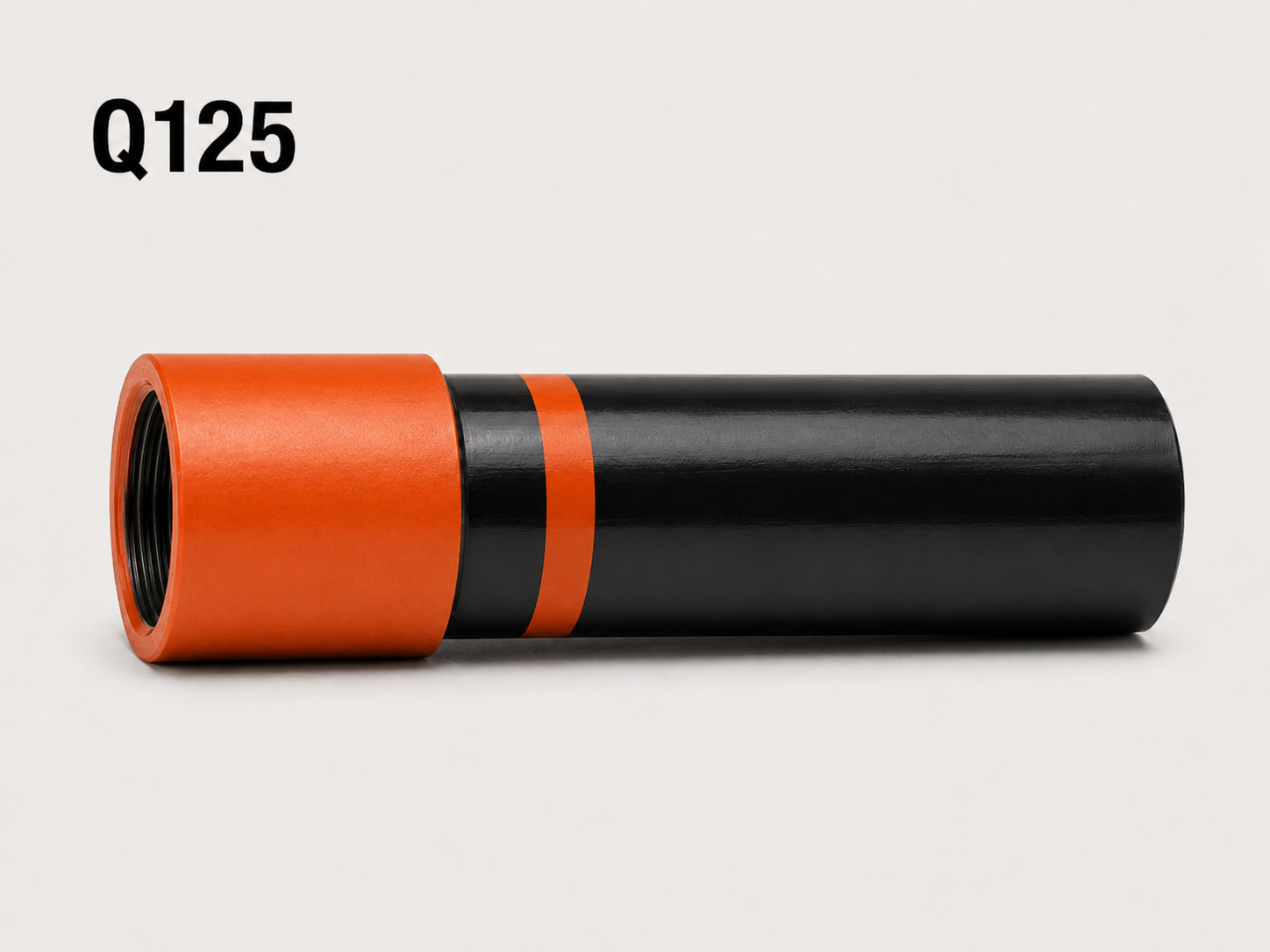

Q125 Casing Pipe – High-Strength Steel Casing for Oil & Gas Wells
What Is Q125 Casing Pipe?
Q125 is an ultra-high-strength steel casing grade defined under API 5CT / ISO 11960, with a yield strength of 125,000–150,000 psi and a minimum tensile strength of 135,000 psi. Through controlled alloy design, quenching, and tempering, API 5CT Q125 casing achieves excellent strength, toughness, and dimensional stability for demanding downhole conditions. Q125 casing pipe is typically used in deep and ultra-deep wells where high axial load, collapse resistance, and burst pressure performance are critical.
- Applicable Product: Casing & Tubing 4½”–20”
- Thread Types: STC / LTC / BTC, Premium Connections
- Available Lengths: R1 / R2 / R3
- Service Environment: Ultra-Deep Wells, High-Pressure Gas Wells, API 5CT / ISO 11960 Compliant
Q125 Casing Chemical Composition
API 5CT Q125 casing pipe is a high-strength low-alloy casing grade. Its chemical composition is controlled to ensure hardenability, toughness, and stable mechanical performance after quenching and tempering. In API 5CT chemical composition tables, Q125 is listed with Type 1, Type 2, Type 3, and Type 4 chemistry options; “NL” means no limit, while the element still needs to be reported in product analysis.
| Grade | Type | C max. | Mn max. | Mo max. | Cr max. | Ni max. | Cu max. | P max. | S max. | Si max. |
| Q125 | 1 | 0.0035 | 0.0135 | 0.0085 | 0.015 | 0.0099 | — | 0.0002 | 0.0001 | — |
| Q125 | 2 | 0.0035 | 0.01 | NL | NL | 0.0099 | — | 0.0002 | 0.0002 | — |
| Q125 | 3 | 0.005 | 0.019 | NL | NL | 0.0099 | — | 0.0003 | 0.0001 | — |
| Q125 | 4 | 0.005 | 0.019 | NL | NL | 0.0099 | — | 0.0003 | 0.0002 | — |
Q125 Casing Mechanical Properties
| Grade | Type | Yield Strength | Tensile Strength | Hardness |
| Q125 | All | 862–1034 MPa 125,000–150,000 psi | ≥931 MPa ≥135,000 psi | No fixed max hardness limit; hardness variation is controlled |
Test requirements of Q125 Casing Pipe
| Steel Grade | Mandatory Tests | Supplementary Tests | NDT | Corrosion Test | Key Control Requirements |
| Q125 | Chemical analysis, Tensile, Hardness, Hydrostatic pressure | Metallographic examination | UT+MT | limited | High-strength crack risk |
Material Comparison
Q125-1 vs Q125-2 vs Q125-3 vs Q125-4
All four types share the same Q125 yield strength grade, but differ significantly in chemical composition controls, impurity limits, and applicable well conditions.
| Item | Q125-1 | Q125-2 | Q125-3 | Q125-4 |
|---|---|---|---|---|
| Strength Grade | Q125 | Q125 | Q125 | Q125 |
| Key Difference | Strictest composition control; most conservative | Strict on C/Mn/P/S; more flexible on Mo/Cr | Wider composition limits | Very close to Type 3; usually need to check procurement spec / mill MTC |
| C, Mn | Lower | Lower | Can be higher | Can be higher |
| P, S Impurities | Lower | Lower | Can be higher | Can be higher |
| Mo, Cr | Upper limit specified | NL (No Limit) | NL (No Limit) | NL (No Limit) |
| Selection Guidance | High-reliability; priority for critical well sections | When mill alloy design flexibility is acceptable | General sweet-well; cost/delivery priority | Same as Q125-3; must confirm contract requirements |
Selection Recommendations by Type
Q125-1 — Default Choice for Critical Applications
RECOMMENDEDFor deep wells, high-pressure environments, high-load conditions, critical production casing, and projects demanding impact toughness consistency, quality traceability — Q125-1 should be the default. Its tighter controls on C, Mn, P, S and explicit Cr/Mo upper limits reduce procurement and acceptance risks significantly.
Q125-2 — Acceptable After Engineering Approval
ALTERNATIVEIf the mill has mature heat treatment and alloy design capabilities, and the MTC, impact test, hardness, NDE, dimensional, and connection performance all meet project requirements, Q125-2 can be used. It allows greater Mo/Cr flexibility, so you cannot rely on the grade designation alone — actual heat-specific chemistry and inspection reports must be reviewed.
Q125-3 / Q125-4 — Not Recommended for High-Risk Well Sections
USE WITH CAUTIONThese two types have wider composition windows, especially with higher allowable C, Mn, P, and S values. They are not necessarily unusable, but are better suited for non-sour service, sweet wells, designs with sufficient safety margins, where operator specifications allow and mill quality records are reliable. Exercise caution in well sections sensitive to low-temperature toughness, SSC risk, or connection sealing integrity.
Q125 casing pipe is a high-strength oilfield casing pipe manufactured according to API 5CT.
The “Q125” grade means the pipe has a minimum yield strength of 125,000 psi. It is mainly used in deep wells, high-pressure wells, and high-load drilling conditions.
| Item | Q125 Specification |
|---|---|
| Standard | API 5CT |
| Minimum yield strength | 125 ksi / 862 MPa |
| Maximum yield strength | 150 ksi / 1,034 MPa |
| Minimum tensile strength | 135 ksi / 931 MPa |
| Heat treatment | Quenched and tempered |
| Common connections | STC, LTC, BTC, premium connections |
| Application | Deep wells, HPHT wells, high-pressure formations |
Q125 has higher yield and tensile strength than P110, so it is more suitable for deeper wells and more severe mechanical loading conditions.
However, Q125 is usually more expensive and may require stricter quality control.
Q125 is not recommended for sour gas or H₂S environments.
For sour service, grades such as L80, C90, T95, C110, or other NACE-compliant materials are usually preferred.
4-1/2″, 5″, 5-1/2″, 7″, 7-5/8″, 8-5/8″, 9-5/8″, 10-3/4″, 13-3/8″, 16″, 18-5/8″, and 20″.
Available sizes depend on the manufacturer, wall thickness, weight, connection type, and order quantity.
